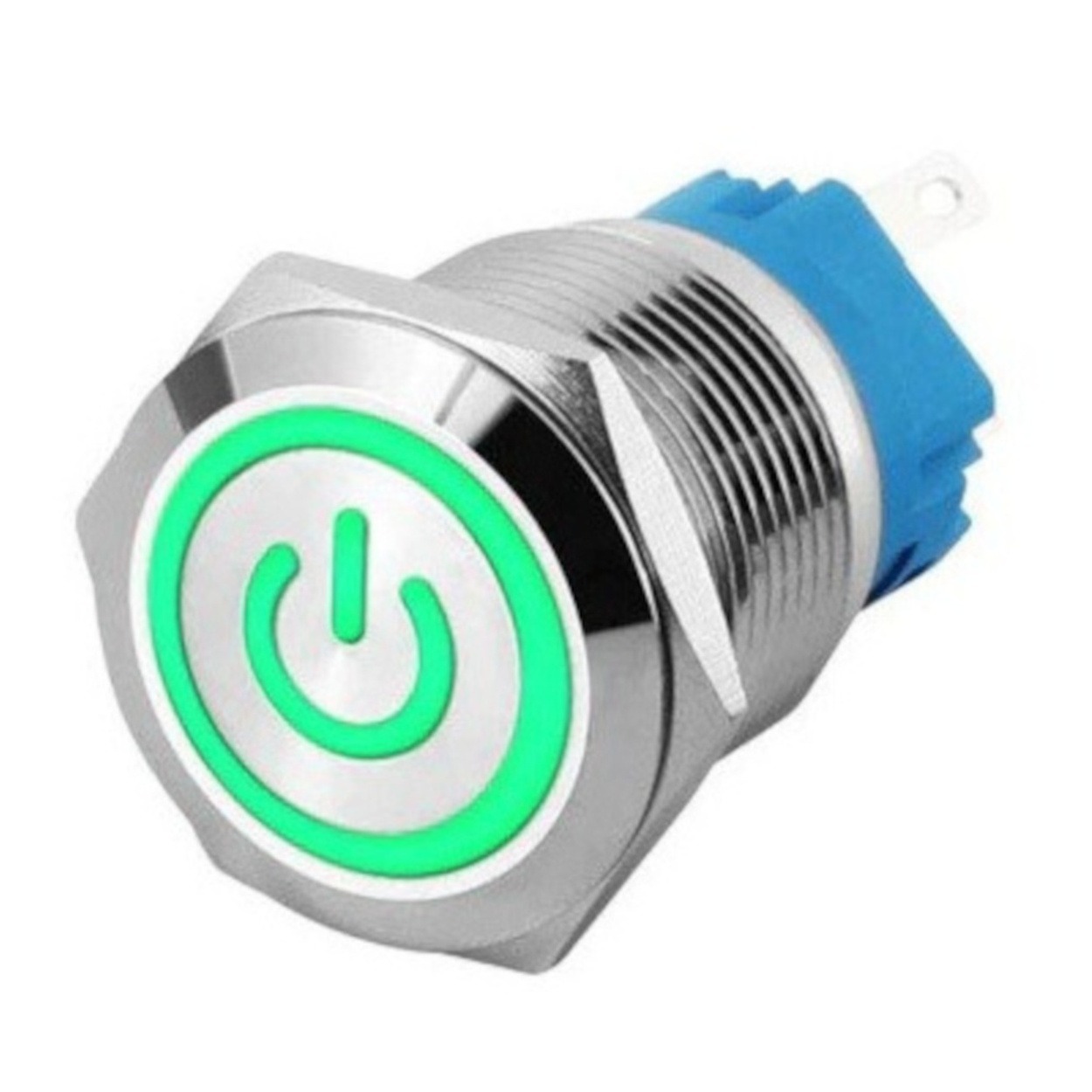

16MM Metal Push Button Switch with illuminated green LED ring and power symbol. Suitable for industrial control panels, automation equipment, DIY electronics, automotive systems, UPS, inverter, audio equipment, and power control applications. Mechanical Specification Parameter Specification Mounting Hole Size 16mm Head Type Flat Head / Power Symbol Operation Type Momentary / Latching (available) Button Material Stainless Steel / Nickel Plated Brass Body Material Metal Terminal Type Pin Terminal / Solder Terminal Contact Configuration 1NO / 1NC Panel Thickness 1 – 10mm Mechanical Life 500, 000 cycles Operating Force Approx. 3 – 5N Protection Level IP65 / IP67 Front Panel Electrical Specification Parameter Specification Rated Voltage 12V / 24V / 220V AC/DC Rated Current 2A – 5A Contact Resistance ≤ 50mΩ Insulation Resistance ≥ 1000MΩ Dielectric Strength 2000VAC LED Color Green LED Voltage 3V / 6V / 12V / 24V / 220V Switching Type SPST / SPDT Dimension Specification Parameter Approx. Size Head Diameter 18mm – 20mm Thread Diameter 16mm Total Length 25mm – 32mm Thread Length 12mm – 15mm Pin Configuration Pin Function C Common NO Normally Open NC Normally Closed LED+ LED Positive LED− LED Negative Features High durability metal body Waterproof front panel Bright illuminated LED ring Anti-rust stainless construction Long electrical life Easy panel mounting Elegant industrial design Applications Industrial Control Panels Automation Systems Audio Amplifiers Power Supplies Electric Vehicles UPS/Inverters DIY Electronics Projects Computer Cabinets Available Variants Momentary Type Self-Lock/Latching Type Red / Green / Blue / White / Yellow LED 12V / 24V / 220V LED versions 1NO or 1NO1NC contact types
