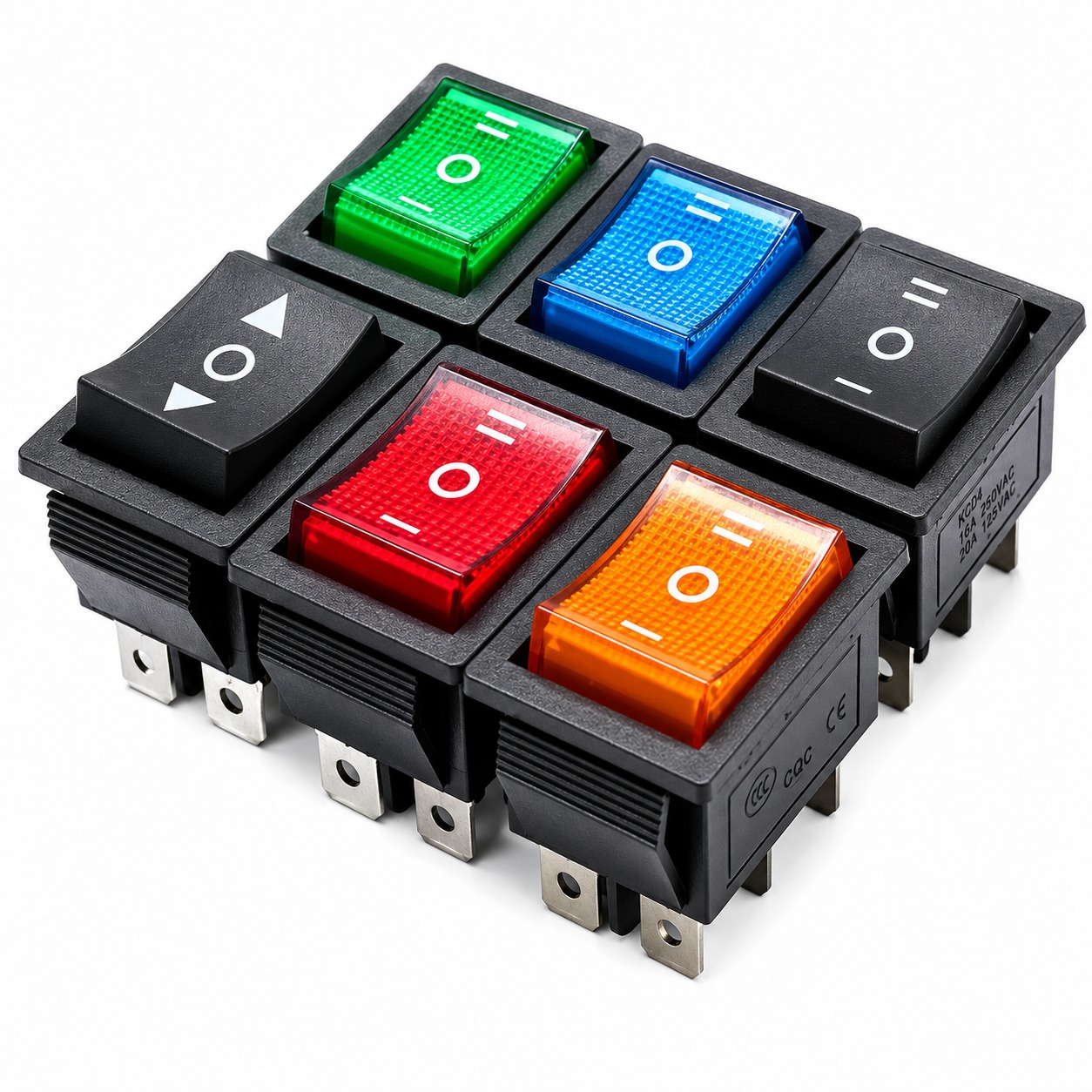

The switches shown in the image are Rectangular Rocker Switches available in illuminated and non-illuminated versions with various actuator colors (Red, Green, Blue, Amber, and Black). These switches are widely used in electrical panels, industrial equipment, power supplies, UPS systems, home appliances, and automation controls. Technical Specifications Parameter Specification Product Name Rectangular Rocker Switch Series KCD4 / KCD2 (Equivalent) Switch Type Rocker Switch Operation ON-OFF / ON-OFF-ON (Model Dependent) Contact Configuration SPST / SPDT / DPST / DPDT (Depending on Model) Number of Pins 2 Pin / 3 Pin / 4 Pin / 6 Pin Illumination LED / Neon / Non-Illuminated Indicator Colors Red, Green, Blue, Amber (Yellow), Black Rated Voltage 125VAC / 250VAC Rated Current 6A, 10A, 16A or 20A (Model Dependent) Contact Resistance ≤50 mΩ Insulation Resistance ≥100 MΩ at 500VDC Dielectric Strength 1500VAC for 1 Minute Electrical Life 10, 000 Cycles Minimum Mechanical Life 50, 000–100, 000 Operations Contact Material Silver Alloy Terminal Material Tin-Plated Brass Housing Material Flame Retardant Nylon (PA66) Actuator Material Polycarbonate (PC) Mounting Type Snap-in Panel Mount Terminal Type Quick Connect / Solder Lug Operating Temperature -25°C to +85°C Storage Temperature -40°C to +85°C Protection Rating IP40 (Front Panel) Compliance CE, RoHS (Model Dependent) Available Configurations SPST ON-OFF (2 Pin) SPST Illuminated (3 Pin) SPDT ON-OFF-ON (3 Pin) DPST ON-OFF (4 Pin) DPDT ON-OFF-ON (6 Pin) Standard Dimensions (Approx.) Dimension Size Overall Length 30 mm Overall Width 25 mm Overall Height 33 mm Panel Cut-out 30 × 22 mm Actuator Size 22 × 17 mm Terminal Width 6.3 mm Terminal Configuration 2 Pin (SPST) Pin 1 ─── AC Input Pin 2 ─── AC Output 3 Pin (Illuminated) Pin 1 ─── Line (Input) Pin 2 ─── Load (Output) Pin 3 ─── Lamp Neutral 6 Pin (DPDT) 1 2 3 4 5 6 Suitable for polarity reversal, motor control and change-over circuits. Features Heavy-duty snap-in panel mounting Long electrical and mechanical life Illuminated and non-illuminated options Flame-retardant housing Silver alloy contacts for reliable switching Multiple switching configurations Quick-connect terminals for easy wiring Available in various actuator colors Compact and durable construction Applications Industrial Control Panels Power Supplies UPS Systems Inverters Home Appliances Battery Chargers Automation Equipment Medical Equipment Laboratory Instruments Audio & Video Equipment Agricultural Machinery Automotive Accessories DIY Electronic Projects Package Contents 1 × Rectangular Rocker Switch SEO Product Title Rectangular Rocker Switch ON/OFF | Illuminated & Non-Illuminated | SPST SPDT DPST DPDT | 2 Pin 3 Pin 4 Pin 6 Pin | 6A 10A 16A 20A 125V/250V Panel Mount | Switch Mart India Keywords Rectangular Rocker Switch, Illuminated Rocker Switch, Non Illuminated Rocker Switch, KCD Rocker Switch, ON OFF Rocker Switch, Panel Mount Rocker Switch, SPST Rocker Switch, DPDT Rocker Switch, 6 Pin Rocker Switch, Industrial Rocker Switch, Switch Mart India.
