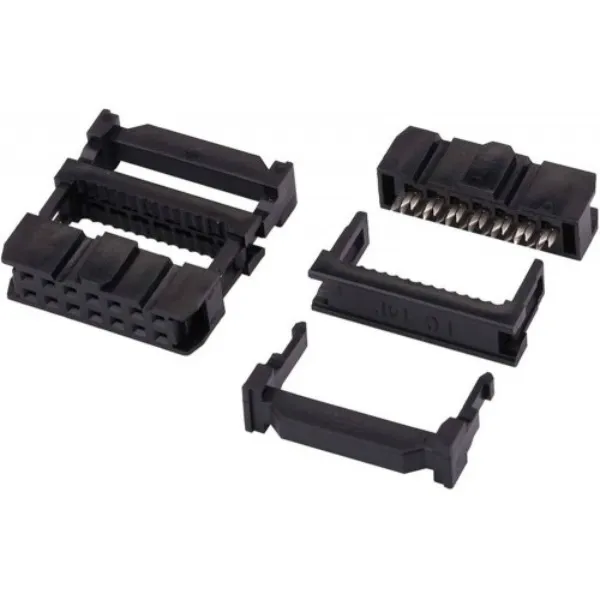

this is a 14 Pin FRC (Flat Ribbon Cable) Female IDC Connector, commonly used for terminating 1.27 mm pitch flat ribbon cables onto a 2.54 mm pitch dual-row box header without soldering.
14 Pin FRC Female IDC Connector – Full Specification
General Specifications
Parameter Specification
Product Name 14 Pin FRC Female IDC Connector
Connector Type IDC (Insulation Displacement Connector)
Number of Pins 14 Pins
Number of Rows 2 Rows
Pins per Row 7 × 2
Pitch 2.54 mm (0.100')
Ribbon Cable Pitch 1.27 mm (0.050')
Gender Female
Contact Type IDC Fork Contact
Mounting Type Cable Mount
Cable Entry Straight
Lock Type Snap Lock / Strain Relief Clip
Mating Connector 14 Pin Box Header (Male)
Cable Size 28 AWG Flat Ribbon Cable
Wire Type Flat Ribbon Cable
Electrical Specifications
Parameter Value
Rated Current 1 A per Contact
Rated Voltage 250 VAC
Contact Resistance ≤20 mΩ
Insulation Resistance ≥1000 MΩ
Withstanding Voltage 1000 VAC for 1 Minute
Material Specifications
Part Material
Housing PBT (UL94V-0) / Glass Filled Polyester
Contacts Phosphor Bronze
Contact Plating Tin Plated over Nickel
Strain Relief Nylon / PBT
Insulation UL94V-0 Flame Retardant
Mechanical Specifications
Parameter Value
Operating Temperature -40°C to +105°C
Insertion Force Low IDC Press Fit
Mating Cycles 50–100 Cycles
Cable Retention High Strength Strain Relief
Approximate Dimensions
Dimension Size
Overall Length 30–32 mm
Width 16–18 mm
Height 9–11 mm
Pin Pitch 2.54 mm
Row Spacing 2.54 mm
Cable Pitch 1.27 mm
Dimensions may vary slightly depending on the manufacturer.
Features
IDC (Insulation Displacement) termination
No soldering required
Compatible with 28 AWG ribbon cables
Polarized housing prevents incorrect insertion
Snap-on strain relief for secure cable holding
Tin-plated contacts for excellent conductivity
High mechanical strength
Flame-retardant housing (UL94V-0)
Easy assembly using IDC press tool or bench vise
Applications
Computer peripherals
Industrial control systems
PLC wiring
Embedded systems
LCD and display interfaces
Data communication equipment
Automation panels
Instrumentation
Robotics
Electronic test equipment
Compatible Accessories
14 Pin Box Header (Straight)
14 Pin Box Header (Right Angle)
14 Core Flat Ribbon Cable (28 AWG)
IDC Crimp Press Tool
PCB Box Header (2.54 mm Pitch)
Package Includes
14 Pin IDC Female Connector Housing
IDC Contact Assembly
Strain Relief Clip
Common Search Keywords (SEO)
14 Pin FRC Female Connector
14 Pin IDC Connector
2.54 mm FRC Connector
Ribbon Cable Connector 14 Pin
IDC Female Socket 14 Pin
14 Pin Flat Cable Connector
Dual Row IDC Connector
14 Pin Ribbon Cable Socket
PCB Box Header Connector
FRC Cable Connector 14 Pin
This specification is suitable for most standard 14-pin 2.54 mm pitch FRC/IDC female connectors used in industrial electronics and PCB interconnections.
