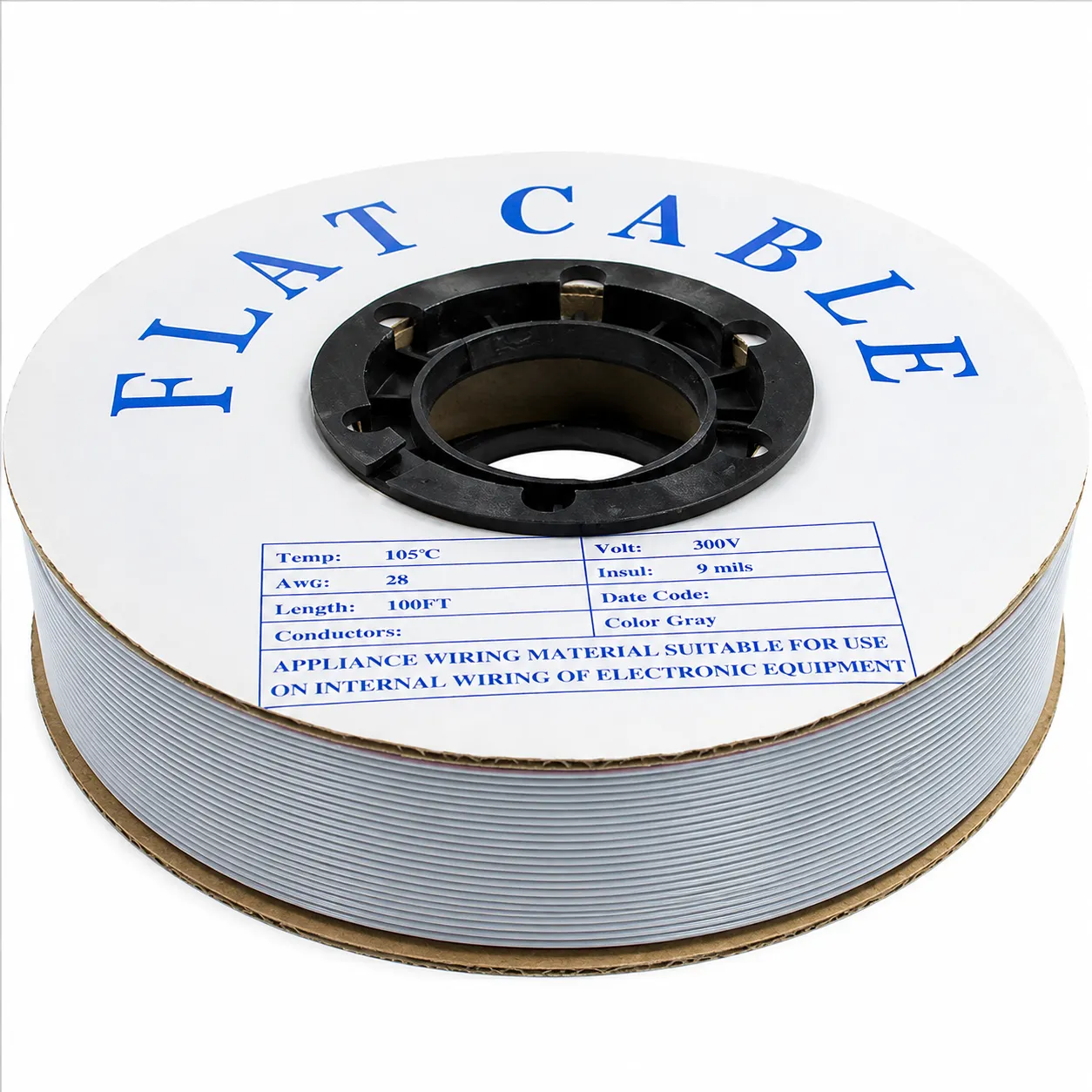

The product shown is a 14 Pin FRC (Flat Ribbon Cable) designed for use with 14 Pin IDC/FRC connectors and 14 Pin Box Headers. It is widely used for PCB interconnections, industrial automation, embedded systems, and electronic equipment.
General Specifications
Parameter Specification
Product Name 14 Pin FRC Flat Ribbon Cable
Cable Type Flat Ribbon Cable (FRC Cable)
Number of Conductors 14 Conductors
Conductor Pitch 1.27 mm (0.050')
Wire Gauge 28 AWG
Conductor Material Stranded Tinned Copper
Insulation Material PVC
Cable Color Gray with Red Edge Stripe
Voltage Rating 300 V
Temperature Rating 105°C
Flame Rating UL VW-1
Standard UL 2651 / RoHS Compliant
Electrical Specifications
Parameter Value
Rated Voltage 300 VAC
Rated Current 1 A per Conductor
Insulation Resistance ≥100 MΩ
Dielectric Strength 1500 VAC / 1 Minute
Conductor Resistance ≤237 Ω/km (28 AWG)
Mechanical Specifications
Parameter Value
Wire Gauge 28 AWG
Conductor Construction 7/0.127 mm Tinned Copper (Typical)
Conductor Pitch 1.27 mm
Number of Conductors 14
Cable Width Approx. 17.8 mm
Insulation Thickness 0.23 mm (Approx.)
Overall Thickness 0.90 mm (Approx.)
Minimum Bend Radius 10 × Cable Thickness
Operating Temperature -20°C to +105°C
Material Specifications
Component Material
Conductor Tinned Copper
Insulation PVC
Outer Color Gray
Edge Identification Red Stripe (Pin 1 Identification)
Approximate Dimensions
Parameter Size
Number of Conductors 14
Conductor Pitch 1.27 mm
Cable Width 17.8 mm
Cable Thickness 0.90 mm
Reel Length 30.5 m (100 ft)
Features
Standard 14-conductor flat ribbon cable
28 AWG stranded tinned copper conductors
1.27 mm conductor pitch
Flexible PVC insulation
Red edge stripe for Pin 1 identification
Suitable for IDC/FRC connectors
Easy termination using IDC connectors
Excellent flexibility and durability
RoHS compliant and flame-retardant
Available in custom lengths
Compatible Connectors
14 Pin IDC Female Connector
14 Pin FRC Female Connector
14 Pin Box Header (2×7)
IDC Crimp Connectors
2.54 mm PCB Box Headers
Applications
PCB to PCB Interconnection
Industrial Automation Systems
PLC Control Panels
Embedded Electronics
Computer Peripherals
Robotics
Instrumentation Equipment
Medical Electronics
Consumer Electronics
Test & Measurement Equipment
Communication Systems
Power Control Equipment
Reel Specifications
Parameter Value
Standard Reel Length 100 ft (30.5 m)
Packaging Plastic/Cardboard Reel
Cable Color Gray
Pin Identification Red Edge Stripe
Advantages
High flexibility for compact installations
Reliable signal transmission
Easy IDC termination without soldering
Durable PVC insulation
Cost-effective wiring solution
Excellent mechanical strength
Industry-standard compatibility
SEO Keywords
14 Pin FRC Cable
14 Core Flat Ribbon Cable
14 Pin Ribbon Cable
28 AWG Ribbon Cable
1.27 mm Pitch FRC Cable
IDC Ribbon Cable
Flat Cable 14 Core
UL2651 Flat Ribbon Cable
14 Way Ribbon Cable
Gray Flat Ribbon Cable
Ribbon Cable for IDC Connector
This specification is suitable for standard 14-pin, 28 AWG, 1.27 mm pitch FRC flat ribbon cables compatible with IDC/FRC connectors and 2.54 mm box headers used in industrial and electronic applications.
General Specifications
Parameter Specification
Product Name 14 Pin FRC Flat Ribbon Cable
Cable Type Flat Ribbon Cable (FRC Cable)
Number of Conductors 14 Conductors
Conductor Pitch 1.27 mm (0.050')
Wire Gauge 28 AWG
Conductor Material Stranded Tinned Copper
Insulation Material PVC
Cable Color Gray with Red Edge Stripe
Voltage Rating 300 V
Temperature Rating 105°C
Flame Rating UL VW-1
Standard UL 2651 / RoHS Compliant
Electrical Specifications
Parameter Value
Rated Voltage 300 VAC
Rated Current 1 A per Conductor
Insulation Resistance ≥100 MΩ
Dielectric Strength 1500 VAC / 1 Minute
Conductor Resistance ≤237 Ω/km (28 AWG)
Mechanical Specifications
Parameter Value
Wire Gauge 28 AWG
Conductor Construction 7/0.127 mm Tinned Copper (Typical)
Conductor Pitch 1.27 mm
Number of Conductors 14
Cable Width Approx. 17.8 mm
Insulation Thickness 0.23 mm (Approx.)
Overall Thickness 0.90 mm (Approx.)
Minimum Bend Radius 10 × Cable Thickness
Operating Temperature -20°C to +105°C
Material Specifications
Component Material
Conductor Tinned Copper
Insulation PVC
Outer Color Gray
Edge Identification Red Stripe (Pin 1 Identification)
Approximate Dimensions
Parameter Size
Number of Conductors 14
Conductor Pitch 1.27 mm
Cable Width 17.8 mm
Cable Thickness 0.90 mm
Reel Length 30.5 m (100 ft)
Features
Standard 14-conductor flat ribbon cable
28 AWG stranded tinned copper conductors
1.27 mm conductor pitch
Flexible PVC insulation
Red edge stripe for Pin 1 identification
Suitable for IDC/FRC connectors
Easy termination using IDC connectors
Excellent flexibility and durability
RoHS compliant and flame-retardant
Available in custom lengths
Compatible Connectors
14 Pin IDC Female Connector
14 Pin FRC Female Connector
14 Pin Box Header (2×7)
IDC Crimp Connectors
2.54 mm PCB Box Headers
Applications
PCB to PCB Interconnection
Industrial Automation Systems
PLC Control Panels
Embedded Electronics
Computer Peripherals
Robotics
Instrumentation Equipment
Medical Electronics
Consumer Electronics
Test & Measurement Equipment
Communication Systems
Power Control Equipment
Reel Specifications
Parameter Value
Standard Reel Length 100 ft (30.5 m)
Packaging Plastic/Cardboard Reel
Cable Color Gray
Pin Identification Red Edge Stripe
Advantages
High flexibility for compact installations
Reliable signal transmission
Easy IDC termination without soldering
Durable PVC insulation
Cost-effective wiring solution
Excellent mechanical strength
Industry-standard compatibility
SEO Keywords
14 Pin FRC Cable
14 Core Flat Ribbon Cable
14 Pin Ribbon Cable
28 AWG Ribbon Cable
1.27 mm Pitch FRC Cable
IDC Ribbon Cable
Flat Cable 14 Core
UL2651 Flat Ribbon Cable
14 Way Ribbon Cable
Gray Flat Ribbon Cable
Ribbon Cable for IDC Connector
This specification is suitable for standard 14-pin, 28 AWG, 1.27 mm pitch FRC flat ribbon cables compatible with IDC/FRC connectors and 2.54 mm box headers used in industrial and electronic applications.
