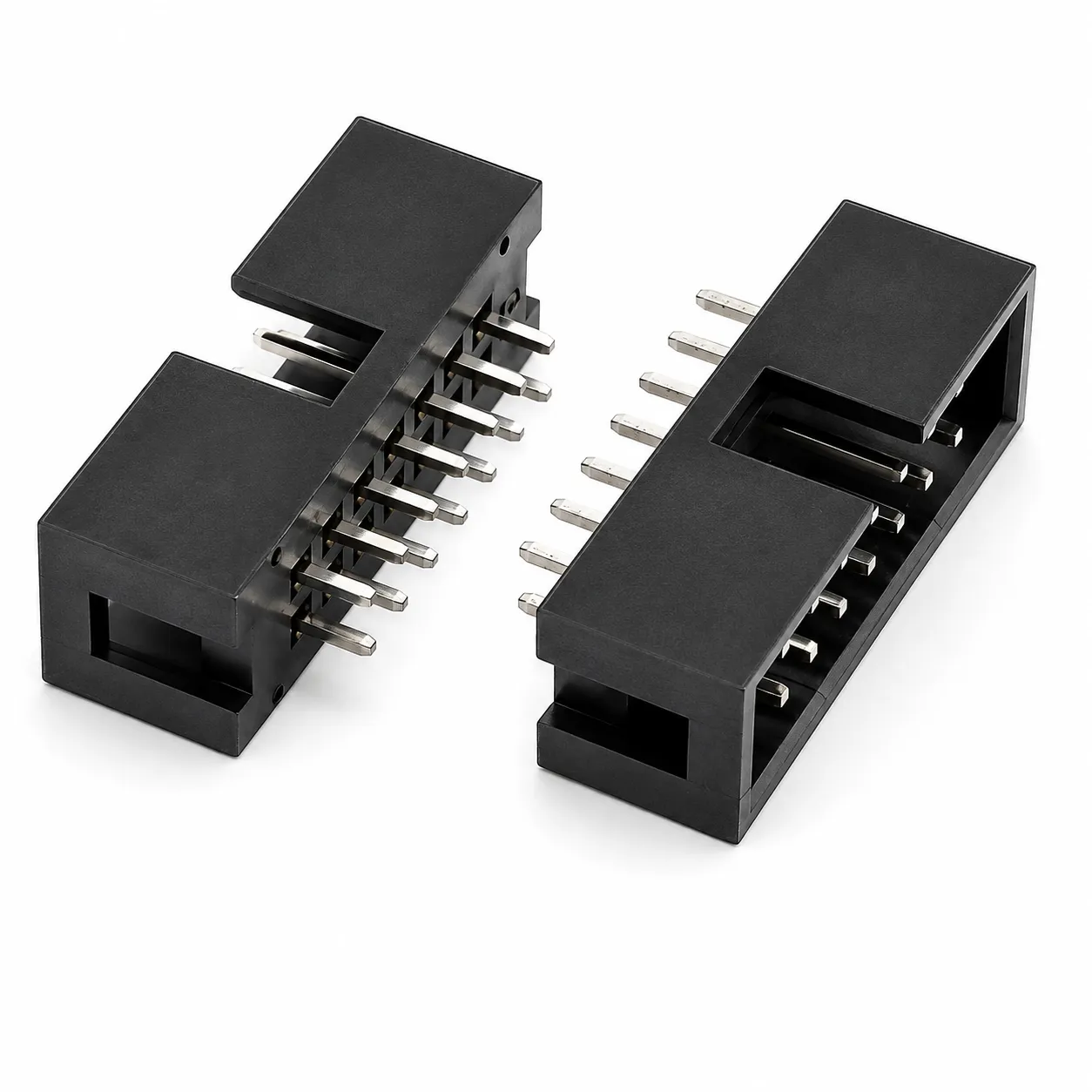

The connector shown in the image is a 14 Pin Box Header Connector, commonly used with 14 Pin IDC/FRC ribbon cable female connectors in industrial control systems, embedded electronics, communication equipment, and PCB interconnections.
General Specifications
Parameter Specification
Product Name 14 Pin Box Header Connector
Connector Type Box Header (Shrouded Header)
Number of Pins 14 Pins
Pin Configuration 2 × 7 (Dual Row)
Pin Pitch 2.54 mm (0.100')
Row Spacing 2.54 mm
Mounting Type Through-Hole PCB
Orientation Straight (Vertical)
Mating Connector 14 Pin IDC/FRC Female Connector
Polarization Keyed (Center Slot)
Locking Feature Polarized Shrouded Housing
Electrical Specifications
Parameter Value
Rated Current 1 A per Contact
Rated Voltage 250 VAC
Contact Resistance ≤20 mΩ
Insulation Resistance ≥1000 MΩ (500 VDC)
Dielectric Withstanding Voltage 1000 VAC for 1 Minute
Mechanical Specifications
Parameter Value
Pin Diameter 0.64 mm Square Pin
PCB Hole Diameter 1.0 mm Recommended
Insertion Force Standard IDC Mating Force
Withdrawal Force High Retention
Mating Cycles 50–100 Cycles
Operating Temperature -40°C to +105°C
Material Specifications
Component Material
Housing PBT (UL94V-0) / Glass-Filled Thermoplastic
Contacts Brass / Phosphor Bronze
Contact Plating Tin Plated over Nickel
Insulator Color Black
Approximate Dimensions
Parameter Size
Overall Length 23–25 mm
Overall Width 12–14 mm
Overall Height 9–11 mm
Pin Pitch 2.54 mm
Row Spacing 2.54 mm
Pin Length Above PCB 6 mm (Approx.)
Pin Length Below PCB 3 mm (Approx.)
Dimensions may vary slightly by manufacturer.
Features
Standard 2.54 mm pitch
14-pin (2×7) dual-row configuration
Polarized keyed design prevents incorrect insertion
Shrouded housing protects pins
Through-hole PCB mounting
Compatible with standard IDC/FRC female connectors
Tin-plated contacts for excellent conductivity
Durable thermoplastic housing with flame-retardant rating
Easy PCB assembly and reliable cable connection
Applications
Industrial Automation
PLC Systems
Microcontroller Development Boards
Embedded Electronics
Computer Peripherals
Data Communication Equipment
Robotics
CNC Machines
Medical Equipment
Test & Measurement Instruments
Power Control Panels
Consumer Electronics
Compatible Accessories
14 Pin IDC Female Connector
14 Core Flat Ribbon Cable (28 AWG)
IDC Crimp Tool
PCB Mounting Hardware
FRC Ribbon Cable Assemblies
Package Contents
1 × 14 Pin Box Header Connector (Straight Through-Hole)
Advantages
Secure and reliable ribbon cable connection
Fast installation without soldering on cable side
Excellent vibration resistance
Long service life
Compact and space-saving design
High insulation performance
Widely used industry-standard interface
SEO Keywords
14 Pin Box Header Connector
14 Pin PCB Header
2.54 mm Box Header
IDC Box Header 14 Pin
FRC Box Header Connector
Shrouded PCB Header
Dual Row 14 Pin Connector
Ribbon Cable Header 14 Pin
PCB Male Header 2×7
IDC Male Box Header Connector
This specification is suitable for standard 14 Pin (2×7), 2.54 mm pitch, through-hole shrouded box header connectors compatible with IDC/FRC ribbon cable female connectors used in industrial and electronic applications.
