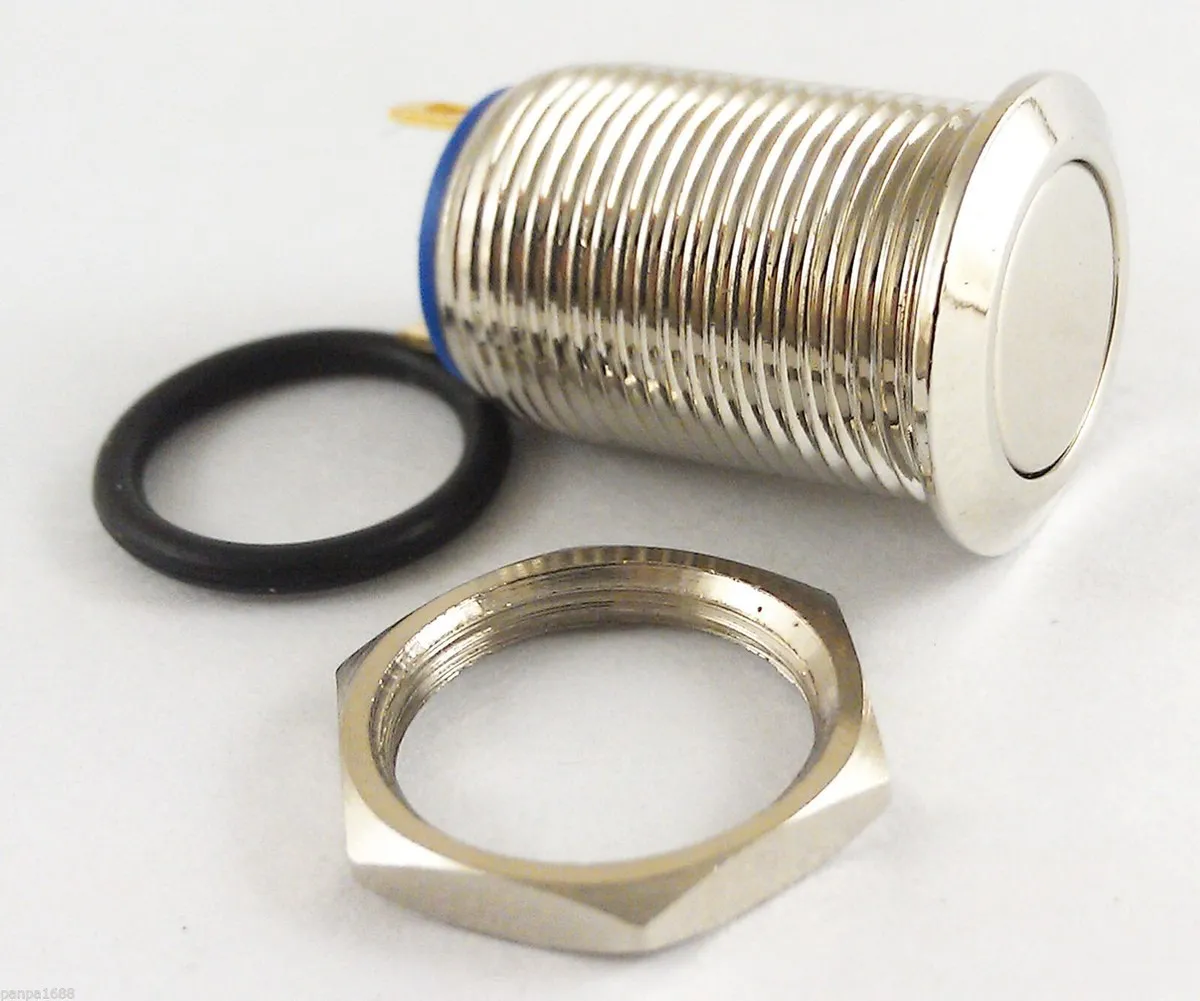

The uploaded image shows a 12 mm threaded metal push-button switch, supplied with a hexagonal mounting nut and sealing O-ring. This style is commonly used as a compact panel-mount industrial push button. The exact electrical rating depends on the particular contact configuration; similar 12 mm versions are available as momentary 1NO and latching types.
General Specifications
Parameter Specification
Product Name 12MM Metal Push Button Switch
Switch Type Metal Push Button
Mounting Size 12 mm
Mounting Thread M12 × 0.75
Contact Configuration 1NO / SPST
Operation Momentary / Self-Reset*
Number of Terminals 2 Pin*
Actuator Shape Round / Flat
Body Material Stainless Steel / Metal
Button Material Stainless Steel
Housing Color Silver
Mounting Type Panel Mount
Terminal Type Solder / Pin Terminal
Mounting Nut Hexagonal Metal Nut
Sealing Rubber O-Ring
*The exact image does not show the rear terminals, so confirm the particular 2-pin variant before specifying the final electrical rating. Standard 12 mm 2-pin versions are commonly offered in both momentary and latching configurations.
Electrical Specifications
For a typical industrial 12 mm 1NO metal switch:
Parameter Typical Specification
Contact Type 1NO
Rated Voltage Up to 250 VAC*
Rated Current Up to 5 A*
Contact Resistance ≤50 mΩ
Insulation Resistance ≥100 MΩ
Dielectric Strength Up to 2500 VAC / 1 min
Electrical Life Up to 50, 000 operations
Mechanical Life Up to 100, 000 operations
A manufacturer specification for a 12 mm metal 1NO version lists 5 A / 250 V, ≤50 mΩ contact resistance, ≥100 MΩ insulation resistance and 50, 000 electrical operations.
Important: Do not assume every 12 mm metal switch has a 5 A/250 VAC rating. Some compact versions are only rated around 2 A/36 VDC, so the rating printed on the actual product/datasheet should be used for mains applications.
Mechanical Specifications
Parameter Approximate Value
Mounting Hole Ø12 mm
Thread M12 × 0.75
Head Diameter Approx. 14–15 mm
Thread Length Approx. 10–12 mm
Panel Thickness Approx. 1–10 mm
Actuation Stroke Approx. 1.5–1.6 mm
Rear Depth Approx. 15–23 mm
Mounting Front Panel / Nut Fixing
Typical M12 versions have a 12 mm mounting hole, with an M12×0.75 threaded body; dimensions vary according to head and terminal style.
Material Specifications
Component Material
Outer Body Stainless Steel / Nickel-Plated Brass
Button Stainless Steel
Mounting Nut Nickel-Plated Brass / Stainless Steel
O-Ring Rubber / Nitrile
Contact Silver Alloy / Metal Alloy
Terminal Brass / Copper Alloy
Environmental Specifications
Parameter Specification
Operating Temperature Approx. -25°C to +65°C
Protection Rating IP65 typical
Higher Protection Versions IP67 available
Corrosion Resistance High
Panel Sealing O-Ring
Some M12 metal push-button models are rated IP65, while industrial versions are available with IP67 protection.
Features
Compact 12 mm panel mounting
Strong metal construction
Stainless-steel appearance
Threaded body for secure mounting
Supplied with hexagonal mounting nut
Rubber O-ring for panel sealing
Momentary and latching versions available
1NO/SPST contact options
Suitable for industrial control panels
Excellent resistance to mechanical wear
Available in illuminated and non-illuminated versions
Typical 2-Pin Wiring
For a 2-pin normally-open momentary version:
Pin 1 → Supply/Input
Pin 2 → Load/Output
Button released: Circuit OPEN
Button pressed: Circuit CLOSED
This is the standard NO operation described for 12 mm 2-pin momentary versions.
Applications
Industrial Control Panels
Automation Equipment
CNC Machines
Machinery
Electrical Control Systems
Power Equipment
Access Control
Marine Equipment
Outdoor Control Panels
Instrumentation
DIY Electronic Projects
Arduino / Microcontroller Projects
Product Specification for Switch Mart
12MM Metal Push Button Switch – Stainless Steel, 1NO, 2 Pin, Momentary, M12×0.75 Thread
SEO Keywords
12MM Metal Switch, 12MM Push Button Switch, 12MM Metal Push Button, Stainless Steel Push Button Switch, M12 Push Button Switch, M12×0.75 Switch, 2 Pin Metal Switch, Momentary Metal Switch, 1NO Push Button, Industrial Push Button Switch, Panel Mount Metal Switch, Waterproof Metal Push Button.
General Specifications
Parameter Specification
Product Name 12MM Metal Push Button Switch
Switch Type Metal Push Button
Mounting Size 12 mm
Mounting Thread M12 × 0.75
Contact Configuration 1NO / SPST
Operation Momentary / Self-Reset*
Number of Terminals 2 Pin*
Actuator Shape Round / Flat
Body Material Stainless Steel / Metal
Button Material Stainless Steel
Housing Color Silver
Mounting Type Panel Mount
Terminal Type Solder / Pin Terminal
Mounting Nut Hexagonal Metal Nut
Sealing Rubber O-Ring
*The exact image does not show the rear terminals, so confirm the particular 2-pin variant before specifying the final electrical rating. Standard 12 mm 2-pin versions are commonly offered in both momentary and latching configurations.
Electrical Specifications
For a typical industrial 12 mm 1NO metal switch:
Parameter Typical Specification
Contact Type 1NO
Rated Voltage Up to 250 VAC*
Rated Current Up to 5 A*
Contact Resistance ≤50 mΩ
Insulation Resistance ≥100 MΩ
Dielectric Strength Up to 2500 VAC / 1 min
Electrical Life Up to 50, 000 operations
Mechanical Life Up to 100, 000 operations
A manufacturer specification for a 12 mm metal 1NO version lists 5 A / 250 V, ≤50 mΩ contact resistance, ≥100 MΩ insulation resistance and 50, 000 electrical operations.
Important: Do not assume every 12 mm metal switch has a 5 A/250 VAC rating. Some compact versions are only rated around 2 A/36 VDC, so the rating printed on the actual product/datasheet should be used for mains applications.
Mechanical Specifications
Parameter Approximate Value
Mounting Hole Ø12 mm
Thread M12 × 0.75
Head Diameter Approx. 14–15 mm
Thread Length Approx. 10–12 mm
Panel Thickness Approx. 1–10 mm
Actuation Stroke Approx. 1.5–1.6 mm
Rear Depth Approx. 15–23 mm
Mounting Front Panel / Nut Fixing
Typical M12 versions have a 12 mm mounting hole, with an M12×0.75 threaded body; dimensions vary according to head and terminal style.
Material Specifications
Component Material
Outer Body Stainless Steel / Nickel-Plated Brass
Button Stainless Steel
Mounting Nut Nickel-Plated Brass / Stainless Steel
O-Ring Rubber / Nitrile
Contact Silver Alloy / Metal Alloy
Terminal Brass / Copper Alloy
Environmental Specifications
Parameter Specification
Operating Temperature Approx. -25°C to +65°C
Protection Rating IP65 typical
Higher Protection Versions IP67 available
Corrosion Resistance High
Panel Sealing O-Ring
Some M12 metal push-button models are rated IP65, while industrial versions are available with IP67 protection.
Features
Compact 12 mm panel mounting
Strong metal construction
Stainless-steel appearance
Threaded body for secure mounting
Supplied with hexagonal mounting nut
Rubber O-ring for panel sealing
Momentary and latching versions available
1NO/SPST contact options
Suitable for industrial control panels
Excellent resistance to mechanical wear
Available in illuminated and non-illuminated versions
Typical 2-Pin Wiring
For a 2-pin normally-open momentary version:
Pin 1 → Supply/Input
Pin 2 → Load/Output
Button released: Circuit OPEN
Button pressed: Circuit CLOSED
This is the standard NO operation described for 12 mm 2-pin momentary versions.
Applications
Industrial Control Panels
Automation Equipment
CNC Machines
Machinery
Electrical Control Systems
Power Equipment
Access Control
Marine Equipment
Outdoor Control Panels
Instrumentation
DIY Electronic Projects
Arduino / Microcontroller Projects
Product Specification for Switch Mart
12MM Metal Push Button Switch – Stainless Steel, 1NO, 2 Pin, Momentary, M12×0.75 Thread
SEO Keywords
12MM Metal Switch, 12MM Push Button Switch, 12MM Metal Push Button, Stainless Steel Push Button Switch, M12 Push Button Switch, M12×0.75 Switch, 2 Pin Metal Switch, Momentary Metal Switch, 1NO Push Button, Industrial Push Button Switch, Panel Mount Metal Switch, Waterproof Metal Push Button.
